A2540系列171822,171823,171824,171825,171826,S11,EI,小四p,CH2.5,5051,2510,CI35

间距mm：	2.5
电流A：	3
应用线径mm：	20~26AWG

上一个： A2542系列

下一个： A2509A系列

产品详情

A2540系列东莞伟昌电子定制连接器工厂批发供应现货价格优惠免费索样品

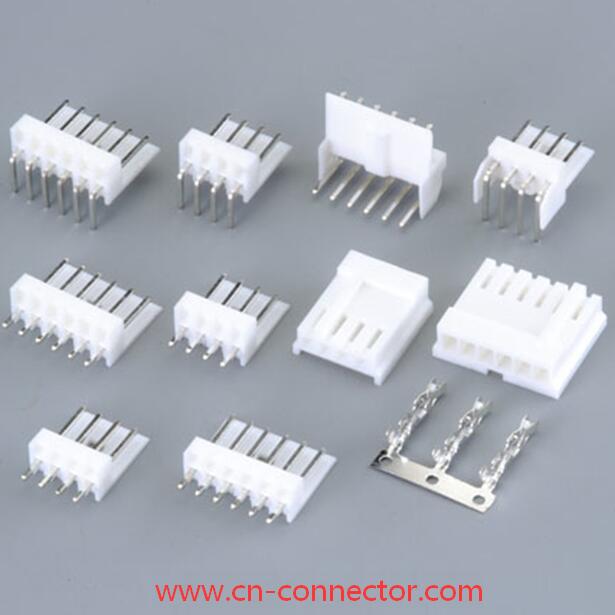

线对板电源连接器

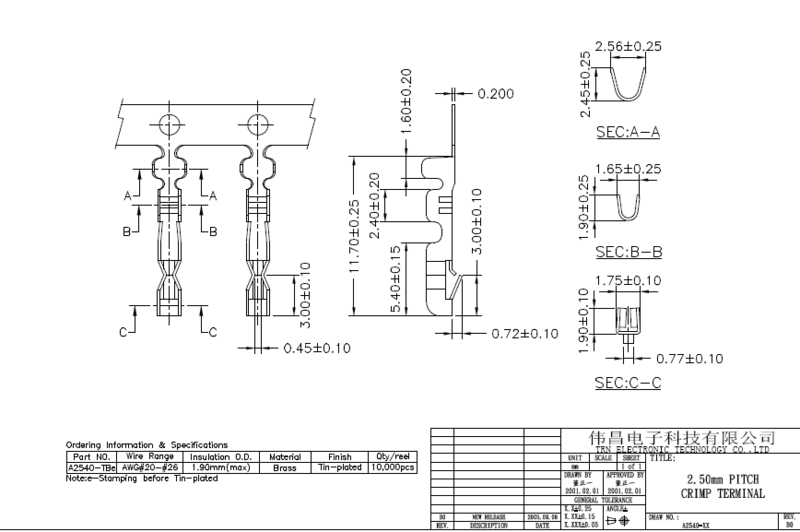

优势：磷铜端子可压接最大外径1.9mm规格线材，镀锡端子保证了更好导电性；胶壳PA66白色可定制环保无卤；针座PA塑胶，防呆防盲插带定位Wafer保证产品稳定性。

合高：直针/弯针-17.55、7.50mm。

应用：电脑风扇、空调、洗衣机、智能家居、无人驾驶飞机、打印机接头、游戏机接插件、电动工具连接器、工业自动化设备、电机电源。

171822-2	39015020	39015020	5507-025
171822-3	39015030	39015030	5507-035
171822-4	39015040	39015040	5507-045
171822-5	39015050	39015050	5507-055
171822-6	39015060	39015060	5507-065
171822-7	39015070	39015070	5507-075
171822-8	39015080	39015080	5507-085
171822-9	39015090	39015090	5507-095
1-171822-0	39015100	39015100	5507-105
1-171822-1	39015110	39015110	5507-115
1-171822-2	39015120	39015120	5507-125
2-171822-2	39270026	39270026	5508-02A
2-171822-3	39270036	39270036	5508-03A
2-171822-4	39270046	39270046	5508-04A
2-171822-5	39270056	39270056	5508-05A
2-171822-6	39270066	39270066	5508-06A
2-171822-7	39270076	39270076	5508-07A
2-171822-8	39270086	39270086	5508-08A
2-171822-9	39270096	39270096	5508-09A
3-171822-0	39270106	39270106	5508-10A
3-171822-1	39270116	39270116	5508-11A
3-171822-2	39270126	39270126	5508-12A
4-171822-2	1-171825-0	171824-2	1-172211-0
4-171822-3	1-171825-1	171824-3	1-172211-1
4-171822-4	1-171825-2	171824-4	1-172211-2
4-171822-5	2-171825-2	171824-5	2-172211-2
4-171822-6	2-171825-3	171824-6	2-172211-3
4-171822-7	2-171825-4	171824-7	2-172211-4
4-171822-8	2-171825-5	171824-8	2-172211-5
4-171822-9	2-171825-6	171824-9	2-172211-6
5-171822-0	2-171825-7	1-171824-0	2-172211-7
5-171822-1	2-171825-8	1-171824-1	2-172211-8
5-171822-2	2-171825-9	1-171824-2	2-172211-9
6-171822-2	3-171825-0	171826-2	3-172211-0
6-171822-3	3-171825-1	171826-3	3-172211-1
6-171822-4	3-171825-2	171826-4	3-172211-2
6-171822-5	4-171825-2	171826-5	4-172211-2
6-171822-6	4-171825-3	171826-6	4-172211-3
6-171822-7	4-171825-4	171826-7	4-172211-4
6-171822-8	4-171825-5	171826-8	4-172211-5
6-171822-9	4-171825-6	171826-9	4-172211-6
7-171822-0	4-171825-7	1-171826-0	4-172211-7
7-171822-1	4-171825-8	1-171826-1	4-172211-8
7-171822-2	4-171825-9	1-171826-2	4-172211-9
8-171822-2	5-171825-0	2-171826-2	5-172211-0
8-171822-3	5-171825-1	2-171826-3	5-172211-1
8-171822-4	5-171825-2	2-171826-4	5-172211-2
8-171822-5	6-171825-2	2-171826-5	172212-2
8-171822-6	6-171825-3	2-171826-6	172212-3
8-171822-7	6-171825-4	2-171826-7	172212-4
8-171822-8	6-171825-5	2-171826-8	172212-5
8-171822-9	6-171825-6	2-171826-9	172212-6
9-171822-0	6-171825-7	3-171826-0	172212-7
9-171822-1	6-171825-8	3-171826-1	172212-8
9-171822-2	6-171825-9	3-171826-2	172212-9
171880-2	7-171825-0	4-171826-2	1-172212-0
171880-3	7-171825-1	4-171826-3	1-172212-1
171880-4	7-171825-2	4-171826-4	1-172212-2
171880-5	8-171825-2	4-171826-5	2-172212-2
171880-6	8-171825-3	4-171826-6	2-172212-3
171880-7	8-171825-4	4-171826-7	2-172212-4
171880-8	8-171825-5	4-171826-8	2-172212-5
171880-9	8-171825-6	4-171826-9	2-172212-6
1-171880-0	8-171825-7	5-171826-0	2-172212-7
1-171880-1	8-171825-8	5-171826-1	2-172212-8
1-171880-2	8-171825-9	5-171826-2	2-172212-9
2-171880-2	9-171825-0	6-171826-2	3-172212-0
2-171880-3	9-171825-1	6-171826-3	3-172212-1
2-171880-4	9-171825-2	6-171826-4	3-172212-2
2-171880-5	173081-2	6-171826-5	4-172212-2
2-171880-6	173081-3	6-171826-6	4-172212-3
2-171880-7	173081-4	6-171826-7	4-172212-4
2-171880-8	173081-5	6-171826-8	4-172212-5
2-171880-9	173081-6	6-171826-9	4-172212-6
3-171880-0	173081-7	7-171826-0	4-172212-7
3-171880-1	173081-8	7-171826-1	4-172212-8
3-171880-2	173081-9	7-171826-2	4-172212-9
4-171880-2	1-173081-0	8-171826-2	5-172212-0
4-171880-3	1-173081-1	8-171826-3	5-172212-1
4-171880-4	1-173081-2	8-171826-4	5-172212-2
4-171880-5	4-173081-2	8-171826-5	172213-2
4-171880-6	4-173081-3	8-171826-6	172213-3
4-171880-7	4-173081-4	8-171826-7	172213-4
4-171880-8	4-173081-5	8-171826-8	172213-5
4-171880-9	4-173081-6	8-171826-9	172213-6
5-171880-0	4-173081-7	9-171826-0	172213-7
5-171880-1	4-173081-8	9-171826-1	172213-8
5-171880-2	4-173081-9	9-171826-2	172213-9
172142-2	5-173081-0	176153-2	1-172213-0
172142-3	5-173081-1	176153-3	1-172213-1
172142-4	5-173081-2	176153-4	1-172213-2
172142-5	172487-2	176153-5	2-172213-2
172142-6	172487-3	176153-6	2-172213-3
172142-7	2-172487-2	176153-7	2-172213-4
172142-8	2-172487-3	176153-8	2-172213-5
172142-9	4-172487-2	176153-9	2-172213-6
1-172142-0	4-172487-3	1-76153-0	2-172213-7
1-172142-1	6-172487-2	1-76153-1	2-172213-8
1-172142-2	6-172487-3	1-76153-2	2-172213-9
2-172142-2	8-172487-2	171886-4	3-172213-0
2-172142-3	8-172487-3	171886-5	3-172213-1
2-172142-4	172732-2	171886-6	3-172213-2
2-172142-5	172732-3	171886-7	4-172213-2
2-172142-6	172732-4	171886-8	4-172213-3
2-172142-7	172732-5	171886-9	4-172213-4
2-172142-8	172732-6	1-171886-0	4-172213-5
2-172142-9	172732-7	1-171886-1	4-172213-6
3-172142-0	172732-8	1-171886-2	4-172213-7
3-172142-1	172732-9	171887-4	4-172213-8
3-172142-2	1-172732-0	171887-5	4-172213-9
4-172142-2	1-172732-1	171887-6	5-172213-0
4-172142-3	1-172732-2	171887-7	5-172213-1
4-172142-4	2-172732-2	171887-8	5-172213-2
4-172142-5	2-172732-3	171887-9	172214-2
4-172142-6	2-172732-4	1-171887-0	172214-3
4-172142-7	2-172732-5	1-171887-1	172214-4
4-172142-8	2-172732-6	1-171887-2	172214-5
4-172142-9	2-172732-7	172106-2	172214-6
5-172142-0	2-172732-8	172106-3	172214-7
5-172142-1	2-172732-9	172106-4	172214-8
5-172142-2	3-172732-0	172106-5	172214-9
6-172142-2	3-172732-1	172106-6	1-172214-0
6-172142-3	3-172732-2	2-172106-2	1-172214-1
6-172142-4	4-172732-2	2-172106-3	1-172214-2
6-172142-5	4-172732-3	2-172106-4	2-172214-2
6-172142-6	4-172732-4	2-172106-5	2-172214-3
6-172142-7	4-172732-5	2-172106-6	2-172214-4
6-172142-8	4-172732-6	4-172106-2	2-172214-5
6-172142-9	4-172732-7	4-172106-3	2-172214-6
7-172142-0	4-172732-8	4-172106-4	2-172214-7
7-172142-1	4-172732-9	4-172106-5	2-172214-8
7-172142-2	5-172732-0	4-172106-6	2-172214-9
8-172142-2	5-172732-1	172107-2	3-172214-0
8-172142-3	5-172732-2	172107-3	3-172214-1
8-172142-4	172800-2	172107-4	3-172214-2
8-172142-5	172800-3	172107-5	4-172214-2
8-172142-6	172800-4	172107-6	4-172214-3
8-172142-7	172800-5	2-172107-2	4-172214-4
8-172142-8	172800-6	2-172107-3	4-172214-5
8-172142-9	172800-7	2-172107-4	4-172214-6
9-172142-0	172800-8	2-172107-5	4-172214-7
9-172142-1	172800-9	2-172107-6	4-172214-8
9-172142-2	1-172800-0	4-172107-2	4-172214-9
39-01-5020	1-172800-1	4-172107-3	5-172214-0
39-01-5030	1-172800-2	4-172107-4	5-172214-1
39-01-5040	2-172800-2	4-172107-5	5-172214-2
39-01-5050	2-172800-3	4-172107-6	170377-1
39-01-5060	2-172800-4	172211-2	170430-1
39-01-5070	2-172800-5	172211-3	170376-1
39-01-5080	2-172800-6	172211-4	170429-1
39-01-5090	2-172800-7	172211-5	170377-2
39-01-5100	2-172800-8	172211-6	170430-2
39-01-5110	2-172800-9	172211-7	170376-2
39-01-5120	3-172800-0	172211-8	170429-2
170262-1	3-172800-1	172211-9	170377-3
170262-2	3-172800-2		170430-3
170262-4	4-172800-2		170376-3
170263-1	4-172800-3		170429-3
170263-2	4-172800-4
170263-4	4-172800-5
170204-1	4-172800-6
170204-2	4-172800-7
170204-4	4-172800-8
170369-1	4-172800-9
171825-2	5-172800-0
171825-3	5-172800-1
171825-4	5-172800-2
171825-5	39-27-0026
171825-6	39-27-0036
171825-7	39-27-0046
171825-8	39-27-0056
171825-9	39-27-0066
	39-27-0076
	39-27-0086
	39-27-0096
	39-27-0106
	39-27-0116
	39-27-0126

ISDM-64	39-53-3127	14567126	14600128
ISDM-04-K	39-53-3147	14567136	14600138
ISDM-06-K	39-53-3167	14567146	14600148
ISDM-08-K	39-53-3187	14567156	14600158
ISDM-10-K	39-53-3207	14567166	14600168
ISDM-12-K	39-53-3227	14567176	14600178
ISDM-14-K	39-53-3247	14567186	14600188
ISDM-16-K	39-53-3267	14567196	14600198
ISDM-18-K	39-53-3287	14567206	14600208
ISDM-20-K	39-53-3307	14567216	14600218
ISDM-22-K	39-53-3327	14567226	14600228
ISDM-24-K	39-53-3347	14567236	14600238
ISDM-26-K	39-53-3367	14567246	14600248
ISDM-28-K	39-53-3387	14567256	14600258
ISDM-30-K	39-53-3407	14564025	14567021
ISDM-32-K	39-53-3427	14564035	14567031
ISDM-34-K	39-53-3447	14564045	14567041
ISDM-36-K	39-53-3467	14564055	14567051
ISDM-38-K	39-53-3487	14564065	14567061

22-01-4101	22014101	22014101	E-6471-10-02	7880-1B
22-01-4111	22014111	22014111	E-6471-11-02	7880-2B
22-01-4121	22014121	22014121	E-6471-12-02	7880-3B
22-01-4131	22014131	22014131	E-6471-13-02	7880-4B
22-01-4141	22014141	22014141	E-6471-14-02	7880-5B
22-01-4151	22014151	22014151	E-6471-15-02	7880-6B
22-01-4161	22014161	22014161	E-6471-16-02	7880-7B
22-01-4171	22014171	22014171	E-6471-17-02	7880-8B
22-01-4181	22014181	22014181	E-6471-18-02	7880-9B
22-01-4191	22014191	22014191	E-6471-19-02	7880-2C
22-01-4201	22014201	22014201	E-6471-20-02	7880-3C
22-01-4211	22014211	22014211	E-6471-21-02	7880-4C
22-01-4221	22014221	22014221	E-6471-22-02	7880-5C
22-01-4231	22014231	22014231	E-6471-23-02	7880-6C
22-01-4241	22014241	22014241	E-6471-24-02	7880-7C
22-01-4251	22014251	22014251	E-6471-25-02	7880-8C
1375820-2	22012027	22012027	2695-02R	7880-9C
1375820-3	22012037	22012037	2695-03R	AE-6410-02A(222)
1375820-4	22012047	22012047	2695-04R	AE-6410-03A(222)
1375820-5	22012057	22012057	2695-05R	AE-6410-04A(222)
1375820-6	22012067	22012067	2695-06R	AE-6410-05A(222)
1375820-7	22012077	22012077	2695-07R	AE-6410-06A(222)
1375820-8	22012087	22012087	2695-08R	AE-6410-07A(222)

1-280359-0 1-280359-0
280365
280365-4
284123-1
282792-1
282798-1
280366
280513
280515
280368
281018
280369
102241-1
102241-2
102241-3
102241-4
102241-5
102241-6
102241-7
102241-8

OF-01	OF-2	OF-2	A-70430-0316	704300316
OF-03	OF-3	OF-3	A-70430-0317	704300317
OF-04	OF-4	OF-4	A-70430-0318	704300318
OF-05	OF-5	OF-5	A-70430-0319	704300319
OF-06	OF-6	OF-6	A-70430-0320	704300320
OF-07	OF-7	OF-7	A-70430-0321	704300321
OF-08	OF-8	OF-8	A-70430-0322	704300322
OF-09	OF-9	OF-9	A-70430-0323	704300323
OF-10	OFH-2	OFH-2	A-70430-0324	704300324
OF-11	OFH-3	OFH-3	A-70430-0325	704300325
OF-12	OFH-4	OFH-4	A-70430-0326	704300326
OF-13	OFH-5	OFH-5	A-70430-0327	704300327
OF-14	OFH-6	OFH-6	A-70430-0328	704300328

77311-827-05LF	10881105	10881425	42377-0207
77311-827-06LF	10881125	10881445	42377-0208
77311-827-07LF	10881145	10881465	42377-0209
77311-827-08LF	10881165	10881485	42377-0210
77311-827-09LF	10881185	10881505	42377-0211
77311-827-10LF	10881205	10881525	42377-0247
77311-827-11LF	10881225	10881545	42377-0248
77311-827-12LF	10881245	10881565	42377-0249
77311-827-13LF	10881265	10881585	42377-0250
77311-827-14LF	10881285	10881605	42377-0251
77311-827-15LF	10881305	10881625	42377-0252
77311-827-16LF	10881325	10881645	42377-0253
77311-827-17LF	10881345	10881665	42377-0254
77311-827-18LF	10881365	10881685	42377-0255
77311-827-19LF	10881385	10881705	42377-0256
77311-827-20LF	10881405	10881725	42377-0257
77311-827-21LF	10881425	10881745	42377-0258

10-88-1261	10881261	1088-1261
10-88-1281	10881281	1088-1281
10-88-1301	10881301	1088-1301
10-88-1321	10881321	1088-1321
10-88-1341	10881341	1088-1341
10-88-1361	10881361	1088-1361
10-88-1381	10881381	1088-1381
10-88-1401	10881401	1088-1401
10-88-1421	10881421	1088-1421
10-88-1441	10881441	1088-1441
10-88-1461	10881461	1088-1461
10-88-1481	10881481	1088-1481
10-88-1501	10881501	1088-1501
10-88-1521	10881521	1088-1521
10-88-1541	10881541	1088-1541
10-88-1561	10881561	1088-1561
10-88-1581	10881581	1088-1581
10-88-1601	10881601	1088-1601
10-88-1621	10881621	1088-1621
10-88-1641	10881641	1088-1641
10-88-1661	10881661	1088-1661
10-88-1681	10881681	1088-1681
10-88-1701	10881701	1088-1701
10-88-1721	10881721	1088-1721
10-88-1741	10881741	1088-1741
10-88-1761	10881761	1088-1761
10-88-1781	10881781	1088-1781
10-88-1801	10881801	1088-1801

(171822，小四P)原厂线对板连接器 5507-035 171822-4
171822-2	39015020	39015020	5507-025
171822-3	39015030	39015030	5507-035
171822-4	39015040	39015040	5507-045
171822-5	39015050	39015050	5507-055
171822-6	39015060	39015060	5507-065
171822-7	39015070	39015070	5507-075
171822-8	39015080	39015080	5507-085
171822-9	39015090	39015090	5507-095
1-171822-0	39015100	39015100	5507-105
1-171822-1	39015110	39015110	5507-115
1-171822-2	39015120	39015120	5507-125
2-171822-2	39270026	39270026	5508-02A
2-171822-3	39270036	39270036	5508-03A
2-171822-4	39270046	39270046	5508-04A
2-171822-5	39270056	39270056	5508-05A
2-171822-6	39270066	39270066	5508-06A
2-171822-7	39270076	39270076	5508-07A
2-171822-8	39270086	39270086	5508-08A
2-171822-9	39270096	39270096	5508-09A
3-171822-0	39270106	39270106	5508-10A
3-171822-1	39270116	39270116	5508-11A
3-171822-2	39270126	39270126	5508-12A
4-171822-2	1-171825-0	171824-2	1-172211-0
4-171822-3	1-171825-1	171824-3	1-172211-1
4-171822-4	1-171825-2	171824-4	1-172211-2
4-171822-5	2-171825-2	171824-5	2-172211-2
4-171822-6	2-171825-3	171824-6	2-172211-3
4-171822-7	2-171825-4	171824-7	2-172211-4
4-171822-8	2-171825-5	171824-8	2-172211-5
4-171822-9	2-171825-6	171824-9	2-172211-6
5-171822-0	2-171825-7	1-171824-0	2-172211-7
5-171822-1	2-171825-8	1-171824-1	2-172211-8
5-171822-2	2-171825-9	1-171824-2	2-172211-9
6-171822-2	3-171825-0	171826-2	3-172211-0
6-171822-3	3-171825-1	171826-3	3-172211-1
6-171822-4	3-171825-2	171826-4	3-172211-2
6-171822-5	4-171825-2	171826-5	4-172211-2
6-171822-6	4-171825-3	171826-6	4-172211-3
6-171822-7	4-171825-4	171826-7	4-172211-4
6-171822-8	4-171825-5	171826-8	4-172211-5
6-171822-9	4-171825-6	171826-9	4-172211-6
7-171822-0	4-171825-7	1-171826-0	4-172211-7
7-171822-1	4-171825-8	1-171826-1	4-172211-8
7-171822-2	4-171825-9	1-171826-2	4-172211-9
8-171822-2	5-171825-0	2-171826-2	5-172211-0
8-171822-3	5-171825-1	2-171826-3	5-172211-1
8-171822-4	5-171825-2	2-171826-4	5-172211-2
8-171822-5	6-171825-2	2-171826-5	172212-2
8-171822-6	6-171825-3	2-171826-6	172212-3
8-171822-7	6-171825-4	2-171826-7	172212-4
8-171822-8	6-171825-5	2-171826-8	172212-5
8-171822-9	6-171825-6	2-171826-9	172212-6
9-171822-0	6-171825-7	3-171826-0	172212-7
9-171822-1	6-171825-8	3-171826-1	172212-8
9-171822-2	6-171825-9	3-171826-2	172212-9
171880-2	7-171825-0	4-171826-2	1-172212-0
171880-3	7-171825-1	4-171826-3	1-172212-1
171880-4	7-171825-2	4-171826-4	1-172212-2
171880-5	8-171825-2	4-171826-5	2-172212-2
171880-6	8-171825-3	4-171826-6	2-172212-3
171880-7	8-171825-4	4-171826-7	2-172212-4
171880-8	8-171825-5	4-171826-8	2-172212-5
171880-9	8-171825-6	4-171826-9	2-172212-6
1-171880-0	8-171825-7	5-171826-0	2-172212-7
1-171880-1	8-171825-8	5-171826-1	2-172212-8
1-171880-2	8-171825-9	5-171826-2	2-172212-9
2-171880-2	9-171825-0	6-171826-2	3-172212-0
2-171880-3	9-171825-1	6-171826-3	3-172212-1
2-171880-4	9-171825-2	6-171826-4	3-172212-2
2-171880-5	173081-2	6-171826-5	4-172212-2
2-171880-6	173081-3	6-171826-6	4-172212-3
2-171880-7	173081-4	6-171826-7	4-172212-4
2-171880-8	173081-5	6-171826-8	4-172212-5
2-171880-9	173081-6	6-171826-9	4-172212-6
3-171880-0	173081-7	7-171826-0	4-172212-7
3-171880-1	173081-8	7-171826-1	4-172212-8
3-171880-2	173081-9	7-171826-2	4-172212-9
4-171880-2	1-173081-0	8-171826-2	5-172212-0
4-171880-3	1-173081-1	8-171826-3	5-172212-1
4-171880-4	1-173081-2	8-171826-4	5-172212-2
4-171880-5	4-173081-2	8-171826-5	172213-2
4-171880-6	4-173081-3	8-171826-6	172213-3
4-171880-7	4-173081-4	8-171826-7	172213-4
4-171880-8	4-173081-5	8-171826-8	172213-5
4-171880-9	4-173081-6	8-171826-9	172213-6
5-171880-0	4-173081-7	9-171826-0	172213-7
5-171880-1	4-173081-8	9-171826-1	172213-8
5-171880-2	4-173081-9	9-171826-2	172213-9
172142-2	5-173081-0	176153-2	1-172213-0
172142-3	5-173081-1	176153-3	1-172213-1
172142-4	5-173081-2	176153-4	1-172213-2
172142-5	172487-2	176153-5	2-172213-2
172142-6	172487-3	176153-6	2-172213-3
172142-7	2-172487-2	176153-7	2-172213-4
172142-8	2-172487-3	176153-8	2-172213-5
172142-9	4-172487-2	176153-9	2-172213-6
1-172142-0	4-172487-3	1-76153-0	2-172213-7
1-172142-1	6-172487-2	1-76153-1	2-172213-8
1-172142-2	6-172487-3	1-76153-2	2-172213-9
2-172142-2	8-172487-2	171886-4	3-172213-0
2-172142-3	8-172487-3	171886-5	3-172213-1
2-172142-4	172732-2	171886-6	3-172213-2
2-172142-5	172732-3	171886-7	4-172213-2
2-172142-6	172732-4	171886-8	4-172213-3
2-172142-7	172732-5	171886-9	4-172213-4
2-172142-8	172732-6	1-171886-0	4-172213-5
2-172142-9	172732-7	1-171886-1	4-172213-6
3-172142-0	172732-8	1-171886-2	4-172213-7
3-172142-1	172732-9	171887-4	4-172213-8
3-172142-2	1-172732-0	171887-5	4-172213-9
4-172142-2	1-172732-1	171887-6	5-172213-0
4-172142-3	1-172732-2	171887-7	5-172213-1
4-172142-4	2-172732-2	171887-8	5-172213-2
4-172142-5	2-172732-3	171887-9	172214-2
4-172142-6	2-172732-4	1-171887-0	172214-3
4-172142-7	2-172732-5	1-171887-1	172214-4
4-172142-8	2-172732-6	1-171887-2	172214-5
4-172142-9	2-172732-7	172106-2	172214-6
5-172142-0	2-172732-8	172106-3	172214-7
5-172142-1	2-172732-9	172106-4	172214-8
5-172142-2	3-172732-0	172106-5	172214-9
6-172142-2	3-172732-1	172106-6	1-172214-0
6-172142-3	3-172732-2	2-172106-2	1-172214-1
6-172142-4	4-172732-2	2-172106-3	1-172214-2
6-172142-5	4-172732-3	2-172106-4	2-172214-2
6-172142-6	4-172732-4	2-172106-5	2-172214-3
6-172142-7	4-172732-5	2-172106-6	2-172214-4
6-172142-8	4-172732-6	4-172106-2	2-172214-5
6-172142-9	4-172732-7	4-172106-3	2-172214-6
7-172142-0	4-172732-8	4-172106-4	2-172214-7
7-172142-1	4-172732-9	4-172106-5	2-172214-8
7-172142-2	5-172732-0	4-172106-6	2-172214-9
8-172142-2	5-172732-1	172107-2	3-172214-0
8-172142-3	5-172732-2	172107-3	3-172214-1
8-172142-4	172800-2	172107-4	3-172214-2
8-172142-5	172800-3	172107-5	4-172214-2
8-172142-6	172800-4	172107-6	4-172214-3
8-172142-7	172800-5	2-172107-2	4-172214-4
8-172142-8	172800-6	2-172107-3	4-172214-5
8-172142-9	172800-7	2-172107-4	4-172214-6
9-172142-0	172800-8	2-172107-5	4-172214-7
9-172142-1	172800-9	2-172107-6	4-172214-8
9-172142-2	1-172800-0	4-172107-2	4-172214-9
39-01-5020	1-172800-1	4-172107-3	5-172214-0
39-01-5030	1-172800-2	4-172107-4	5-172214-1
39-01-5040	2-172800-2	4-172107-5	5-172214-2
39-01-5050	2-172800-3	4-172107-6	170377-1
39-01-5060	2-172800-4	172211-2	170430-1
39-01-5070	2-172800-5	172211-3	170376-1
39-01-5080	2-172800-6	172211-4	170429-1
39-01-5090	2-172800-7	172211-5	170377-2
39-01-5100	2-172800-8	172211-6	170430-2
39-01-5110	2-172800-9	172211-7	170376-2
39-01-5120	3-172800-0	172211-8	170429-2
170262-1	3-172800-1	172211-9	170377-3
170262-2	3-172800-2		170430-3
170262-4	4-172800-2		170376-3
170263-1	4-172800-3		170429-3
170263-2	4-172800-4
170263-4	4-172800-5
170204-1	4-172800-6
170204-2	4-172800-7
170204-4	4-172800-8
170369-1	4-172800-9
171825-2	5-172800-0
171825-3	5-172800-1
171825-4	5-172800-2
171825-5	39-27-0026
171825-6	39-27-0036
171825-7	39-27-0046
171825-8	39-27-0056
171825-9	39-27-0066
	39-27-0076
	39-27-0086
	39-27-0096
	39-27-0106
	39-27-0116
	39-27-0126

东莞伟昌电子科技成立于2014年，注册资金1000万，位于交通便利的东莞石碣，邻近深圳、广州、惠州。

公司注塑、冲压、自动组装、端子线束等部门均严格按照ISO14001目标质量管理体系生产，主要致力于环保无卤、UL安规High temperature resistant connector、Wire to Board‍ Connectors、Board to Board Connectors、Wire to Wire connectors‍、Isulation Displacement Connectors、Pin header/Femaleheader/Sata、FPC connectors、FFC Connectors‍、Adaptor Board-In Connectors‍、ChainTerminal/Splices/Soldless、Terminals/SolderlessSplices、Automotiveconnectors、Waterproof Connectors、Power Connectors、LED Connectors、LVDS Connectors、NGFF/Mini-pci Connectors、Card Connectors、Battery holder/Battery connectors、Wiring-harness‍、PC Power Cable、Ribbon Cable Connectors、SATA Cable、RF Solutions、Automotive cables、Shunt Wires及Odm/Oem connectors模具的研发、设计、生产与销售Cvilux Connectors、JWT Connectors。

产品主要替代TE‍、AMPHENOL、KET、YAZAKI、DELPHI、MOLEX、JAE、JST、HIROSE、PANASONIC、CVILUX、FCI、FOXCONN、UJU、JAM、STOCKO、SEIKO、HARWIN、KYOCERA、KEL、SAMTEC。

伟昌连接器产品广泛应用于平板电脑、笔记本、游戏机、微型投影仪、监控摄像头、智能家居、智能安防、智能穿戴、TV-Box机顶盒、LED照明电源、广告显示、DVD播放机、打印机、复印件、扫描仪、网络路由器、医疗便携式诊断、医疗监控、血液分析仪、汽车车机导航、行车记录仪、GPS全球定位系统、智能水表电表气表、变压器、工业自动化、伺服器、蓝牙模组、电源模块、背光模组、摄像头模组等。

产品环保及安全规范符合ROHS2.0、无卤、REACH及UL‍安规等……

现主要合作伙伴有HUAWEI、TOSHIBA、LOGITECH、HP、FOXCONN、AOC、PRIMAX、BYD、HSAE、CJT等……

友情链接

‍TE‍ AMPHENOL KET YAZAKI‍ DELPHI MOLEX‍ JAE‍ JST‍ HIROSE‍ PANASONIC CVILUX‍ FCI FOXCONN UJU JAM STOCKO‍ LUMBERG SEIKO HARWIN KYOCERA KEL‍ 3M特种绝缘胶带‍ OMRON‍ JST‍ NICOMATIC‍ NT‍ SAMTEC‍ ‍MITSUMI‍ FUJIKURA‍ I-PEX‍ S‍MK‍ HARWIN‍ MEMCON‍ CONCRAFT LOTES‍ PHOENIX

产品应用分享

物联网　车联网　扫地机器人　智能家居　智能安防　智能穿戴　云台摄像机　监视器　微型投影仪　跟踪照明　室内照明　筒灯　录像机　电动牙刷‍　游戏机　Panel　POS机　TV-box　机顶盒　路由器　调制解调器　打印机　扫描仪　传真机　数码相机　磁盘驱动器　电动玩具　平板电脑　电脑电源　笔记本电脑　EVD/DVD播放机　收音机　身份证识别系统　智能卡阅读器　老虎机　空调　冰箱　暖气　烘干机　洗衣机　微波炉　冰柜　LED电视　自动取款机　复印机　健身器材　智能手机　对讲机　喷码机‍　手机摄像头　指纹锁　电子秤

储能　新能源　车机车载导航　汽车音响　全球定位系统(GPS)　仪表板应用程序　重型设备系统　电子控制模块　电源转换器　船　休闲车　汽车车灯‍　汽车后视镜

机器人　扫描仪　太阳能转换器　太阳能逆变器　太阳能发电　传感器　服务器　存储　烟雾探测器　基站　交换站　访问控制　广告显示　称重系统　背光测试自动化设备　伺服器‍　电机马达motor 水表电表气表　5/6芯中高端type-c数据快速充电线自动化设备OEM‍　商用显示屏

医疗监控　血液分析仪　心脏检测仪　病人监护仪　便携式诊断　诊断设备　葡萄糖测定仪　输液泵　仪表　x射线　远程医疗——远程病人监护系统

蓝牙模组　摄像头模组　工控模组　背光模组　电源模块　LED光源模块　接受发射器模组　高频模组　PCBA　

FFC排线　电机马达线　LVDS信号线　锂电池线‍　扬声器喇叭线　AC电源线　适配器线　电脑电源线　车充线　车载线　IDC排线　耳机线　USB数据线　DP数据线　HDMI数据线　SATA数据线　D-SUB数据线　磁吸充电数据线　转接头‍ 耐高温铁氟龙电线电缆

TVS ESD TSS MOS SKY DIODE TRANSISTOR 驱动IC 接口芯片　二三极管　五金弹簧　线圈音圈　电容触摸屏　PTC加热器　珠光颜料　磁铁　线材选型表‍‍ 线材换算一览表

站点优化　站长之家‍　普通收录　文库　贴吧　论坛　知道　360问答　搜搜问问　新浪爱问　抖音

伟昌连接器2014 TRN Electronic Technology Co.,Ltd

Tel：86-0769-8978 3288 E-Mail：13592764450@163.com

Add:东莞市石碣镇唐洪村唐洪工业区明珠东路253号　　　　

‍汽车连接器工厂,连接器供应,电子连接器,连接器制造,连接器供应商,连接器现货,连接器免费样品,连接器报价,批发连接器,定制连接器,散装连接器,端子,TERMINAL,护套,插头插座,WAFER,MOLEX连接器,JST连接器,排针排母,FPC连接器‍,FFC排线,IDC刺破式连接器,卡座,开关SWITCH,USB转接头,SATA,HDMI,TE,TYCO连接器,FCI连接器,HRS连接器,AMP连接器,DU PONT（杜邦）连接器,JAE连接器,高速连接器,浮动连接器,光伏连接器,接插件,电源连接器,电脑连接器,LED连接器,LVDS连接器,背光连接器,工业连接器,军工连接器,防水连接器,宝马头,航空头,连接线,线束加工,汽车线束,端子线,电池座,电池扣,台湾连接器,Cvilux Connector,JWT‍ Connector,基板端子,Board-in-Terminal,2.8系列/110 Series,4.8系列/187 Series,5.2系列/205 Series,6.35系列/250 Series,PCB Terminals,Ring Tongue Terminas,Spade Tongue Terminals,Fuse Series Terminals,Bullet Series Terminals,Splice Terminals,Spot Welding Terminals。

管理登录 |

伟昌电子科技有限公司TRN Electronic Technology Co.,LTD

A2540系列171822,171823,171824,171825,171826,S11,EI,小四p,CH2.5,5051,2510,CI35

伟昌电子科技有限公司
TRN Electronic Technology Co.,LTD
