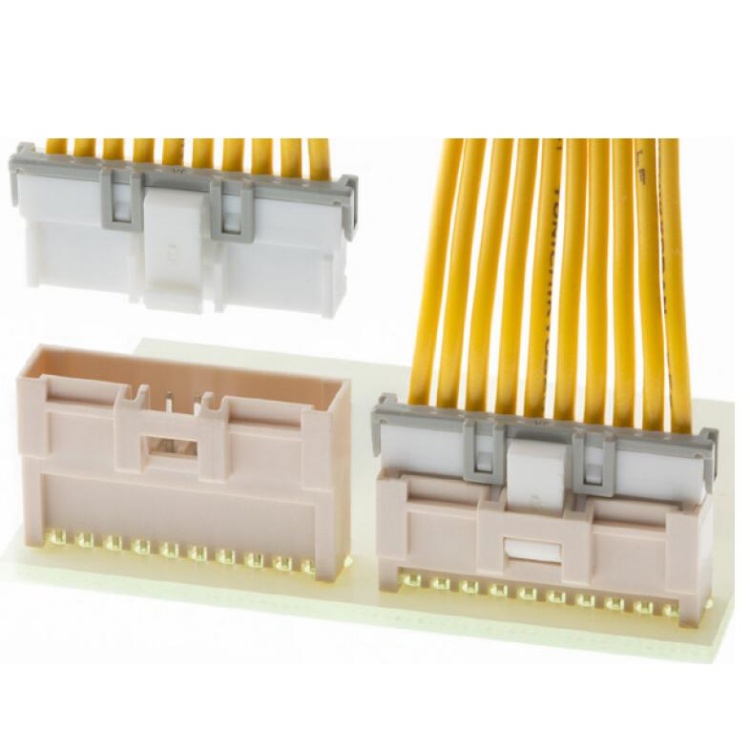

ldeal for compact applications, the MicroTPA 2.00mmwire-to-Board and Wire-to-Wire Connector System
provides electrical and mechanical reliability in a high-temperature design that meets a diverse range of
industry requirements
MicroTPA 2.00 mm 线对板和线对线连接器系统非常适合紧凑型应用，为耐高温设计提供电气和机械可靠性，可满足各种行业要求。
凸起底部和凸缘允许浇灌材料覆盖印刷电路板，以防止水进入连接器
Applicable cable:
Terminal accepts wide range of wire sizes (22 to 28 AWG)
Uses popular crimp terminals:
Readily available, wide tooling installation base in market
Positive lock:
Lock structure to mate with harness and plug header Good mating retention
2.00mm-pitch connector with positive lock:
Delivers secure mating retention without sacrificing compactness
Vertical through-hole high-wall header:
Raised bottom and ledge allow potting material to cover the PC board in order to prevent water from entering the connector
2 to 15 circuits, wire-to-wire connector system:
The same receptacle housing mates with plug housing due to design flexibility
TPA retainer:
Ensures wire is fully inserted
RoHS-compliant and high-temperature capabilities:
Withstands harsh environments
Vertical through-hole header:
All circuits from 2 to 15 circuits
Automotive
Head-, rear-, side-mirror lights
Internal connection with other units
Shifters
Steering wheel, paddle shift, combination switches
Home Appliances
Air conditioner
Vacuum cleaners
Washing Machine
